UBERTI REPLICA RIFLES
1873 Winchester CARBINE Parts
44/40 .45LC .357 Mag .32/20 .38/40
Machined to very close Tolerances. They may require Fitting ,as the Originals required Fitting.
It is IMPORTANT that you tell us the Caliber
when ordering parts.
==============
Click
to Enlarge
Parts are NET COST.
2 Hammer.. Case Hardened...........$85
7 Carrier Block.....Caliber?.............$75
38 is Adjustable to 32/20
19 Trigger Spring...............................$15
20 Hammer Spring.............................$35
36 Hammer Spring Screw..................$5
53 Ham Spring Adjusting Screw........$5
55 Rear Sight Assembly....................$56
Buckhorn Type Pictured Above
Ladder Type Rear Sight Assembly $125
Used on Later Models and 1892
Buckhorn Rear Sight.........................$50
Rear Sight Step................................$6
Front Sight Blue Blade......................$25
Front Sight Silver Blade...................$25
Pictures are Above
57 Semi Finish Butt Stock.................$100
63 Tang Screw....................................$8
66-82 Saddle Ring with Ring Loop
With the Hook Nut..........................$25
67 Firing Pin ......................................$55
Semi Finish Forend...........................$80
72 Cam Lever......................................$15
73 Right Side Plate, Blue W/ Color...$90
74 Left Side Plate, Blue W/ Color.....$90
79 Extractor 45,44,38,44SP................$35
79b Extractor 357, adjustable 32/20...$35
80 Front Band......................................$50
81 Forend Band.. Steel........................$50
83 Right Rear Link Assembly............$65
84 Left Rear Link Assembly..............$65
87 Trigger............................................$45
89 Finger Lever..................................$70
Lever Spring......................................$10
Lever Spring Screw...........................$ 6
90 Lifter Arm.......................................$30
91 Safety Catch...................................$30
92 Left Lever Spring...........................$25
93 Right Lever Spring.........................$25
94 Trigger Safety Spring.....................$15
95 Firing Pin Spring.............................$5
96 Magazine Spring Caliber?.............$15
98 Firing Pin.........................................$55
104 Firing Pin Stop Pin..........................$5
105 Rear Link Pin.................................$5
106 Link Pin...........................................$5
108 Extractor Pin...................................$5
113 Magazine Follower, Cal?.............. $25
115 Hammer Link (Stirrup)..................$15
121 Front Band Screw...........................$8
122 Forend Band Screw........................$8
123
Side Plate Screw. Late Model .190...$8
Side Plate Screw Early Model .140...$8
218 Powder Cover Slide.
Fits on outside Rails Later Model.......$60
Right Early Model Fits inside, Lighter
made .....................................................$50
Click to Enlarge
Left is Later Model Rails on outside
Right is early ,fits Inside
Dust Cover Screw.................................$6
Dust Cover Stop With Screw................$15
542 Finger Lever Hook.........................$25
Metal Butt Plates shown Below in Picture.
============
1873 Winchester CARBINE Parts
44/40 .45LC .357 Mag .32/20 .38/40
Rifle Parts Basically the Same
These are NEW Reproduction Repair Parts. Newly Machined to very close Tolerances. They may require Fitting ,as the Originals required Fitting.
It is IMPORTANT that you tell us the Caliber when ordering parts.
Click
to Enlarge
Rifle Sights
Ladder Rear Sight.............................$125
Buckhorn Type Rear Sight................$50
Buckhorn Rear Sight Elevator......... $8
Front Sight with Bright Blade............$15
Front Sight With Blue Blade..............$15
Parts are NET COST.
3 Left Side plate. Blue with Color.....$90
4 Right Side plate Blue with Color....$90
5 Side plate Screw .190 Late Model .$8
5b Side plate Screw .140 Early Mod...$8
6 Spring cover (Load Gate) Req Fit...$25
7 Spring Cover Screw..........................$6
8 Dust Cover
Powder Cover Slide.
Fits on outside Rails Later Model.......$60
8a Right Early Model Fits inside, Lighter
made .....................................................$50
Click to Enlarge
Left is Later Model Rails on outside
Right is early ,fits Inside
9 Dust Cover Stop with Screw...........$15
10 Dust Cover Stop Screw..................$6
11 Dust Cover Spring..........................$6
12 Dust Cover Spring Screw...............$6
13 Finger Lever Spring.......................$12
14 Finger Lever Spring Screw............$6
15 Carrier Lever Spring.....................$20
16 Carrier Lever Spring Screw..........$6
20 Firing Pin........................................$55
22 Extractor may need fitting............$35
26 Upper Tang Screw.........................$8
27 Lower Tang Screw.........................$10
27a Long Tang Screw for peep sight $15
28 Hammer Assy Case hardened......$85
30 Stirrup.............................................$15
32 Trigger............................................$45
33 Trigger Pin......................................$6
34 Main Spring (Hammer Spring)......$35
35 Main Spring Screw.........................$6
36 Main Spring Tension Screw...........$6
37 Safety Catch...................................$30
39 Trigger Spring................................$10
40 Safety Catch Spring.......................$10
41 Catch Spring Screw........................$6
42 Finger Lever Latch........................$20
43 Finger Lever Latch Spring............$15
45 Lower Tang Screw.........................$10
46 Finger Lever..................................$75
47 Carrier Lever.................................$35
48 Carrier Block Requires Fitting!....$85
49 Link Assembly Right.....................$65
50 Link Assembly Left.......................$65
Metal Butt Plates shown below;
Good Grade Original looking Wood
Semi Finish stock. Dense straight grain
Like the Original.....90% Inletted......$125
Semi Finish Forearm to Match........$80
Saddle Ring & Stud.............................$40
Crescent Butt Plate Wax Cast. It has to
be smoothed ,drilled and fitted. STEEL.$60
BRASS Butt Plate. Wax Cast. Has to be
smoothed, Drilled, polished and fitted...$80
============
Click
to Enlarge
#1 WINCHESTER STYLE
Hi Wall and Lo Wall
TANG SIGHT !. Exact Replica of originals.
Fits the 1973, 1892, 1894, 92, 94, 62,64
and many others. Comes with
an extra Target Aperture. and Screws.
Just under 2 1/4 inches between the holes
center to center.
One hole can be elongated to fit a
wide Variety of other Rifles.
OUT
===========
#2 Stevens 44 ,44 1/2, 45,46
Will fit a wide variety of Rifles
OUT
===========
#3 Winchester Style Tang Sight
Tang sight for Winchester
Hi Wall and Low Wall. it will fit
several old Winchesters including
1892- 92- 1894,94, 1873, 62,1890 Etc
Base is 2 3/4 inches long
Screw holes center to center 1 1/8
OUT
==============
#4 Vanier Tang Sight
High for very long Range Shooting
Base is vary adaptable to many rifles
Base has elongated hole from 2 1/4
to 3 3/8 OUT
======
LADDER REAR SIGHT
With Matching Front Sight
Click
to Enlarge
Ladder Sight used on Winchesters models 1873,
1876, 1892, 1894 and others. 3/8 Dovetail makes
it great for other Rifles such as the Marlins.
It will also fit any other rifle with a Dovetail
slot for the rear sight. Such as the Winchester
62 ,64, 94, 1890, 1906, 64 and 65
Ladder Sight................................................$125
Front Silver Blade Sight......3/8...................$25
Front Blue Blade Sight........3/8...................$25
Buckhorn Style Used on the 1866 1873 1876
1894 Lever Rifles..........Rear Sight............$50
Very close Replica of the Original
Rear Sight Blade.......................................$6
===========

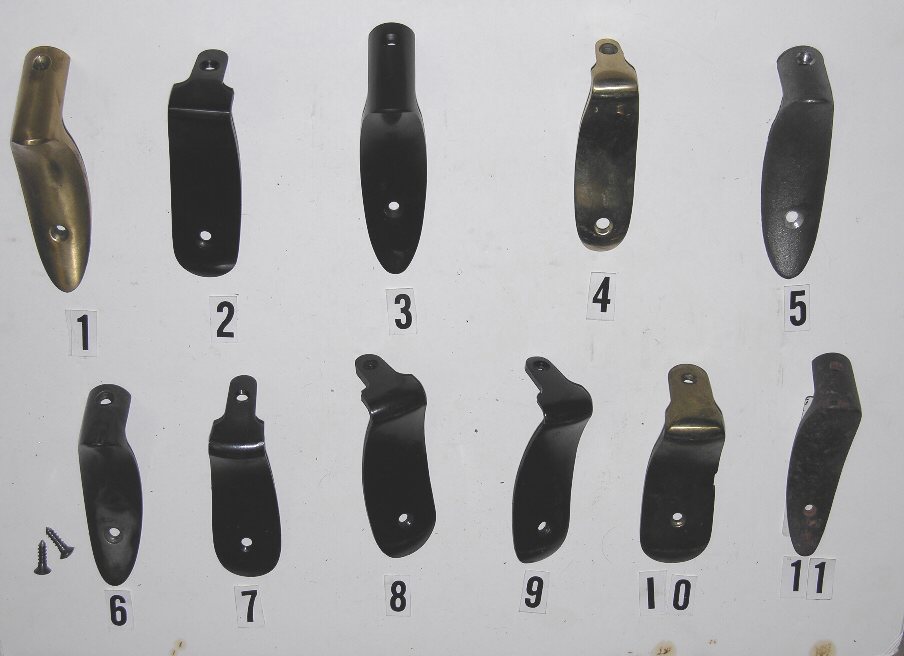

Winchester Metal Butt Plates; Antique Rifle
Click to Enlarge Picture
#1 Win 1866 Lever }Rifle Heavy Brass..$80
#2 Win 1873 Carbine Steel Blue..............$70
#3 Win 1873 Rifle & Hi Wall Blue .........$85
#4 Remington Rolling Block Carb Brass $75
#5 Win 1892 & 1894 Cast Steel Rifle,
Can be polished Smooth bright or used
as is. Acceptable grain finish....................$65
#6 Win 1892 & 1894 Steel Case Hardened
to a beautiful color finish! ..Rifle............$100
#7 Win 1892 & 1894 Blue Steel Carbine $40
#8 Win 1892 & 1894 Plastic Carbine.......$25
#9 Win 1892 & 1894 Aluminum Black....$30
#10 Win 1892 & 1894 Oversize Brass
Butt plate can be Ground down to fit
the Carbine Model...................................$40
#11 Win 1892-1994 ORIGINAL STEEL
Butt Plate Rifle...One left.......................$100
==============
=====================
1877 COLT LIGHTNING REVOLVER
New Parts Net Cost!
Revolver Cylinder Bolt...................$55
Revolver Hand Spring.....................$15
Revolver Base Pin...........................$25
Revolver Sheriff Base Pin...............$30
Revolver Hammer Spring................$35
Sear & Bolt Spring...........................$20
Trigger Spring..................................$30
Trigger Roll......................................$15
Oversize Trigger Stud......................$25
Oversize Trigger Roll......................$20
Ask on Other Parts
COLT LIGHTNING RIFLE
New Machined Parts NET COST!
Extractor 22 Rim Fire.......................$35
Mainspring .22 Rim Fire..................$40
For medium Frame
Medium Firing Pin 38/40 44/40......$40
Medium Extractor 32/20..................$40
Medium Extractor 44/40..................$40
Express Model Extractor 38.56.......$40
A Customer says the 1906 Crescent cut
Oil Finish stock will fit the Lightning.
Want to try it? .................................$120
========
.
Excellent Parts for the Men that care enough to
Rebuild the guns of the Old West!
=================
For CAP & BALL Western Parts;
Click www.gun-parts.com/cap&ball
Colt ,Remington Pistol Replica Parts
=============
Colt New 1976 Single Action
And Pre 1976 Single Actions.
These are new manufactured parts very close to
Original Specifications. Some slight fitting may
be required as on Original parts. w
Hand Old Style....Pre..................................$35
Hand New Style...Post ...............................$35
Just Hand Spring.........................................$15
Sear & Bolt Spring .035 Thick....................$20
Sear & Bolt Spring .025 Thick....................$20
Trigger Blue.................................................$35
Hammer Spring Original Strength..............$20
Hammer Spring Medium Strength.............$20
Hammer Spring Light Strength..................$20
=============
1877 COLT LIGHTNING REVOLVER
New Parts Net Cost!
Revolver Cylinder Bolt...................$55
Revolver Hand Spring.....................$15
Revolver Base Pin...........................$25
Revolver Sheriff Base Pin...............$30
Revolver Hammer Spring................$35
Sear & Bolt Spring...........................$25
Trigger Spring..................................$30
Trigger Roll......................................$15
Oversize Trigger Stud......................$25
Oversize Trigger Roll......................$20
Ask on Other Parts
============
REM Rolling Block Center Fire Rifle
ALL PRICES NET COST
These are replica parts but easy to
adapt them to the original guns.
#1 Unfinished Walnut stock
Inletted but no butt plate..................$85
#2 Finished Stock With Crescent
Steel Butt Plate................................$150
Butt Plate Carbine Model..................$80
#3 Forend to Match Above Stock......$60
Breech Block.......................................$80
Block Pin..............................................$ 6
Firing Pin..............................................$25
Firing Pin......................................22....$25
Firing Pin Spring..................................$ 3
Firing Pin Retaining Pin......................$ 6
Hammer...............................................$75
Hammer Spring...................................$35
Hammer Spring Screw........................$ 4
Hammer Pin.........................................$ 4
Sear......................................................$25
Sear Spring..........................................$25
Trigger.................................................$35
Trigger Spring......................................$20
Trigger Pin...........................................$ 2
Lock Lever..........................................$10
Lock Lever Pin....................................$ 2
Lock Lever Spring...............................$ 5
Lock Lever Spring Screw....................$ 2
Trigger Guard......................................$70
Extractor Nose Center Fire................$30
Extractor Nose 22...............................$30
Front Barrel Band Solid......................$25
Saddle Ring and Stud..........................$25
Ramp Front Sight & Screw.................$20
Dovetail Front Sight Blue Blade........$25
Dovetail Front Sight Silver Blade......$25
Short Triple Rear Sight.......................$70
Leaf Rear Sight Dovetail....................$50
Leaf Rear Sight Elevator....................$12
Guard Plate Screw...............................$ 3
Tang Screw...........................................$ 7
Side Plate Button.................................$20
Button Screw........................................$ 3
See Butt Plate Pictures below
MORE ROLLING BLOCK
#1 Firing Pin Black Powder
Retainer pin on top......................$25
#1 Firing Pin Black Powder
Retainer pin on bottom.................$25
#1 1902 7X57 Firing Pin Smokeless.$25
#1 Mainspring....................................$35
#2 Mainspring....................................$35
#4 Firing Pin 22 RF .062 Dia Tip......$25
#4 Firing Pin .32 RF .090 Dia Tip.....$25
#4 Mainspring...................................$35
#4 Trigger Spring. Sear & Blk Spg..$20
#6 Firing Pin......................................$25
#6 Mainspring...................................$35
#6 Sear/Trigger Spring.....................$25
See the Butt plate Pictures
..................................................................
OBSOLETE OLD MODELS
See The STOCK PAGE for
Stocks on these Marlin Models.
Marlin
1881 Firing Pin, Small Frame 32/40..$50
1881 Firing Pin Large Frame 45/70..$50
1881 Lever latch Spring 32/40..........$25
1881 Lever Latch Spring 45/70.........$25
1881 Mainspring Small Straight Gp..$35
1881 M.Spring Small Pistol Grip......$35
1881 M.Spring Large Straight Grip.$38
1881 M. Spring large Pistol Grip......$38
1889 Firing Pin...................................$50
1889 Ejector Screw Type Old Style..$25
==========
1891 Firing Pin .22.............................$40
1891 Early Firing Pin .32 Needs Fit.$40
1891 Firing Pin .32 Center Fire........$40
1891 Firing Pin .32 Rim Fire.............$40
1891 Side Loading style Gate..........$50
1891 Gate Screw................................$ 6
1891 Cartridge Stop Twisted Spring
hole in rear.......................................$25
1891 Cartridge stop Screw 22RF......$ 7
1891 Ejector 22 Old Screw Type......$25
1891 Ejector .32 Old Screw Type.....$25
1891 Carrier .22 Rim Fire.................$70
1891 Carrier Rocker.........................$20
1891 Carrier Rocker Spring.............$10
1891 Carrier Rocker Spring Screw..$ 7
1891 Finger Lever Spring.................$20
1891 Lever Spring Screw..................$ 7
1891 Extractor .22.............................$25
1891 Mainspring Late Style.............$35
1891 Mainspring Old Style Pistol G.$35
1891 Mainspring Screw....................$ 7
1891 Magazine Tube assembly. Inside,
Outside with Band.............................$65
1891 Ejector unit .32 Flat Spring......$25
1891 Side Plate Screw.......................$25
=============
Click to Enlarge
Marlin 92 Lever Action
Brass Heavy Butt Plate. Requires some
woodwork to fit. Enlarge the picture and
look close to what has to be done....$75
This is the only source for this heavy
Brass Butt Plate.
Semi Finish Walnut Stock..............$100
Click to Enlarge
#1 is Model 92 that is shown above
#2 is Model 27 29 and 37. Stock requires
more fitting to the Brass Crescent
Butt Plate...........................................$75
Stock semi finish..............................$80
Make a real beauty out of your gun
with this heavy Brass Butt Plate!
=============
Winchester 1892 and 92 Same Parts.
Made for the Winchester Rifle.
Net Cost
NEW MANUFACTURED PARTS .w
To very Close tolerances. Some fitting may
be required as on the original parts.
Win 92 Lever Rifle
Winchester 1892 Same parts
Net Cost
Stock Oil Finish Reproduction
With Crescent Butt Plate .................$135
See pictures on the stock page.
Click Stock page
Butt Stock Crescent ,No Plate...........$100
Stock Oil Finish Flat Butt Pl Plate......$85
1892 Antique dealer Restorations
1892 Semi Finish Straight Dense Grain
Crescent Cut Stock RIFLE.................$135
Semi Forend to match Round or Oct? $60
1892 Same as above CARBINE ........$100
Forend for Carbine Semi Rd or Oct...$70
Blued Steel Carbine butt plate.............$35
Rifle Butt Plate Steel, Drilled for Screws
but it needs polishing out and fitting....$65
Stock Tang Screw.................................$ 8
Firing Pin Black Powder........................$35
Firing pin .070 Tip Smokeless..............$35
Front Sight 3/8 With Silver Blade........$25
Front Sight 3/8 With Blue Blade..........$25
Buckhorn Rear Sight............................$50
Rear Sight Elevator..............................$12
Ladder Rear
Sight...............................$125
Hammer Spring.....................................$30
Hammer Spring 1/2 Pistol Grip............$35
Hammer Spring Screw..........................$ 4
Hammer Spring
Strain Screw...............$ 4
Magazine Tube. Carbine 19 1/4 inch
25/20 & 32/20........................................$45
Magazine Tube Carbine 38/40 44/40...$45
Magazine Tube Rifle 23 9/16
25/20 32/20...........................................$45
Magazine Tube Rifle 38/40 44/40........$45
Magazine Tube Plug Carbine With the
full length screw no lip...........................$20
Magazine Plug RifleWith Lip and Slot.$25
Magazine Plug Screw............................$ 4
Magazine Ring 25/20 & 32/20.............$40
Magazine Ring 38/40 & 44/40..............$40
Front Barrel Band Carbine...................$60
Rear Barrel Band Carbine....................$60
Front Barrel Band Screw.......................$8
Rear Barrel Band Screw........................$8
Upper Tang
Screw..................................$8
Magazine Spring State Caliber ............$20
Spring Cover (Loading Gate)..25/20.....$40
Spring Cover (Gate) 38/40 & 44/40......$40
Spring Cover
Screw...............................$ 5
Saddle Ring Assembly...........................$25
Trigger
Spring........................................$20
.
=============
1892 Lever Action
Replica Rifles
Click to Enlarge
These are foreign made rifle parts
made for the REPLICA Rifles made under
various Different Brand names.
Many of the parts can be fitted to
the Original Rifles, or used as is.
PRICES NET COST
#2 Hammer........................................$80
7 Carrier............................................$60
7a Carrier Stop.................................$15
7b Carrier Stop Spring.....................$6
7c Carrier Stop Spring Pin...............$6
10 Trigger.........................................$40
15 Front Sight Without Screw.........$20
19 Trigger Spring.............................$15
20 Mainspring..................................$35
26 Unfinished Lower Tang..............$70
===============
Marlin 1897 Rifle Parts
97 Firing Pin.......................................$35
97 Carrier .22 Rim Fire.....................$65
97 Carrier Rocker.............................$25
97 Carrier Rocker Spring.................$10
97 Rocker Spring Screw....................$ 7
97 Tang Screw...................................$15
97 Mountie & Carbine Stock Semi..$100
============
Winchester 1893 & 1897
Pump Shotgun Parts.
Click Picture to Enlarge it.
Top Walnut Oil Finish Stock ..Net.....$85
#2 Oil Finished
Checkered Stock.....$100
Matching Forend Three Screw..........$45
Plain Walnut No Screw Forend..........$45
Forend Screw Each.............................$3.50
Screws are New Custom Machined
Ejector ................................................$10
Ejector Screw......................................$ 2
Magazine Plug Screw.........................$3.50
Magazine Band Screw.......................$3.50
Carrier Pivot Pin.................................$ 5
Magazine Spring.................................$10
Magazine Follower..............................$10
Cartridge Stop Right...........................$35
Cartridge Stop Left.............................$35
Cartridge Stop Screw..........................$ 4
Bushing Screw.....................................$4
Magazine...........Net............................$75
Action Slide Arm..................................$75
Action Hook Screw...............................$ 5
Trigger..................................................$25
Hammer................................................$60
Sear.......................................................$30
Trigger Guard.......................................$50
Firing Pin...............................................$30
Mainspring............................................$30
Magazine Lock Pin Assembly ............$20
Barrel Adjusting Sleeve.......................$35
Plastic Butt Plate..................................$20
Original Metal Butt Plate Used..........OUT
..New Heat Shield ,not Original...........$25
===============
UBERTI 1866 YELLOWBOY
All Calibers; State your Caliber!
Click to Enlarge
NET PRICES
Parts are NET COST.
2 Hammer.. Case Hardened...........$75
7 Carrier Block.....Caliber?.............$85
38 is Adjustable to 32/20
10 Trigger...........................................$45
15 Front Dovetail Sight.....................$25
80 Carbine Front Band W/Sight.........$60
19 Trigger Spring...............................$15
20 Hammer Spring.............................$35
36 Hammer Spring Screw..................$5
53 Ham Spring Adjusting Screw........$5
Pictures are Above
57 Semi Finish Butt Stock.................$100
58 Finished Brass Butt Plate.............$100
58a Unfinished Brass Butt Plate.......$75
62 Butt Plate Screws Each.................$5
63 Tang Screw....................................$8
66-82 Saddle Ring with Ring Loop
With the Hook Nut..........................$25
67 Firing Pin Extension......................$35
68 Semi Finish Forend , Caliber?......$80
69 Ladder Rear Sight Assembly ......$125
Used on Later Models and 1892
Picture is above.
72 Cam Lever......................................$15
73 Right Side Plate, Brass..................$90
74 Left Side Plate, Brass....................$90
79 Extractor 45,44,38,44SP................$35
79b Extractor 357, adjustable 32/20...$35
83 Right Rear Link Assembly............$65
84 Left Rear Link Assembly..............$65
89 Finger Lever..................................$90
90 Lifter Arm.......................................$40
92 Lever Spring Left...........................$25
93 Lever Spring Right.........................$25
Lever Spring Screw...........................$ 6
95 Firing Pin Spring.............................$5
96 Magazine Spring Caliber?.............$15
97 Breech Block (Bolt) Bare..............$100
98 Firing Pin.........................................$35
101 Lever Screw..................................$12
104 Firing Pin Stop Pin........................$ 5
105 Rear Link Pin................................$5
106 Link Pin..........................................$5
108 Extractor Pin..................................$5
109 Cam Lever Pin...............................$5
113 Magazine Follower, Cal?..............$25
115 Hammer Link (Stirrup) ................$15
118 Magazine Tube 24 1/4..................$60
118 a Magazine Tube 20 Inch.............$60
119 Rear Sight Screw..........................$5
120 Magazine Tube Assembly Screw.$5
123 Side Plate Screw...........................$8
124 Lever Spring Screw......................$6
125 Carrier Block Spring Screw.........$6
127 Loading Gate................................$45
128 Loading Gate Screw.....................$6
216 Forend Band.................................$40
225 Forend Band Link........................$25
237 Lever Hook Spring.......................$10
239 Butt Plate Screw each .................$4
263 Trigger Spring Screw...................$5
283 Forend Cap Screw Each...............$5
542 Lever Hook..................................$20
552 Trigger-Bolt Spring Screw...........$5
542 Finger Lever Hook......................$25
==============
