ERMA Models ET- EP- LA 22
Parts Vary So Tell us which Model !
Click
on Picture
EP-ET-22 Shown. LA is Basically
The same on most parts.
2 Sear Housing.....LA-22 ONLY.....$65
Sear Housing Screw Each...............$ 3
3 Sear Flat Type..............................$35
4 5 Sear Spring..OUT.....Plunger....3.00
Sear Round Type.........................OUT
Round Type Sear Spring...............$ 5
6 Sear Release.................................$25
7 Sear Release Spring.....................$ 3
8 Disconnector.................................$25
Grips plastic......................................$35
10 Trigger.........................................$15
11 Trigger Bar..................................$25
15 Magazine Catch..........................$25
16 Magazine Catch Spring..............$ 5
17 Safety Lever...............................$30
18 19 Safety Lever Spring & Ball.$ 10
Most of the time if the spring and ball have came out of the hole in the safety lever, the hole has gotten bigger and you need to replace safety lever also
20 Safety Ring.................................$15
LA-22 Only...safety bar...................$10
26 Breech Block Stripped Net........$55
27 Extractor.....................................$25
28 29Extractor Spring and Pin........$10
30 Front Toggle...............................$45
31 Rear Toggle...............................$50
33Toggle Axle.................................$10
Toggle Axel Lock........................$ 5
38 Ejector ..sold out
35 36 Firing Pin ET or EP With Block
These are Original Erma. Net.....$40
Firing Pin LA...............................$35
39 Firing Pin Spring........................$15
43 Action Spring.......Scarce!..........$15
41 Action Spring Tube....................$10
42 Action Spring Pin........................$20
44 Lock Bolt........NET..................Out
45 Magazine................................... $50
Assembly/Parts Booklet............$10
NO FRONT SIGHT...NO OTHER MODEL WILL WORK ON ET-22 OR EP-22 OR LA-22
NO MORE BOOKS FOR ET-22
Spring KIT All above Models
State which model Wanted..
Erma EP-22 Luger Type .22 LR $40
Firing Spring, Recoil Spring,
Trigger Bar Plunger Spring,
Safety Spring, Sear release spring
Extractor Spring,
Click to Enlarge

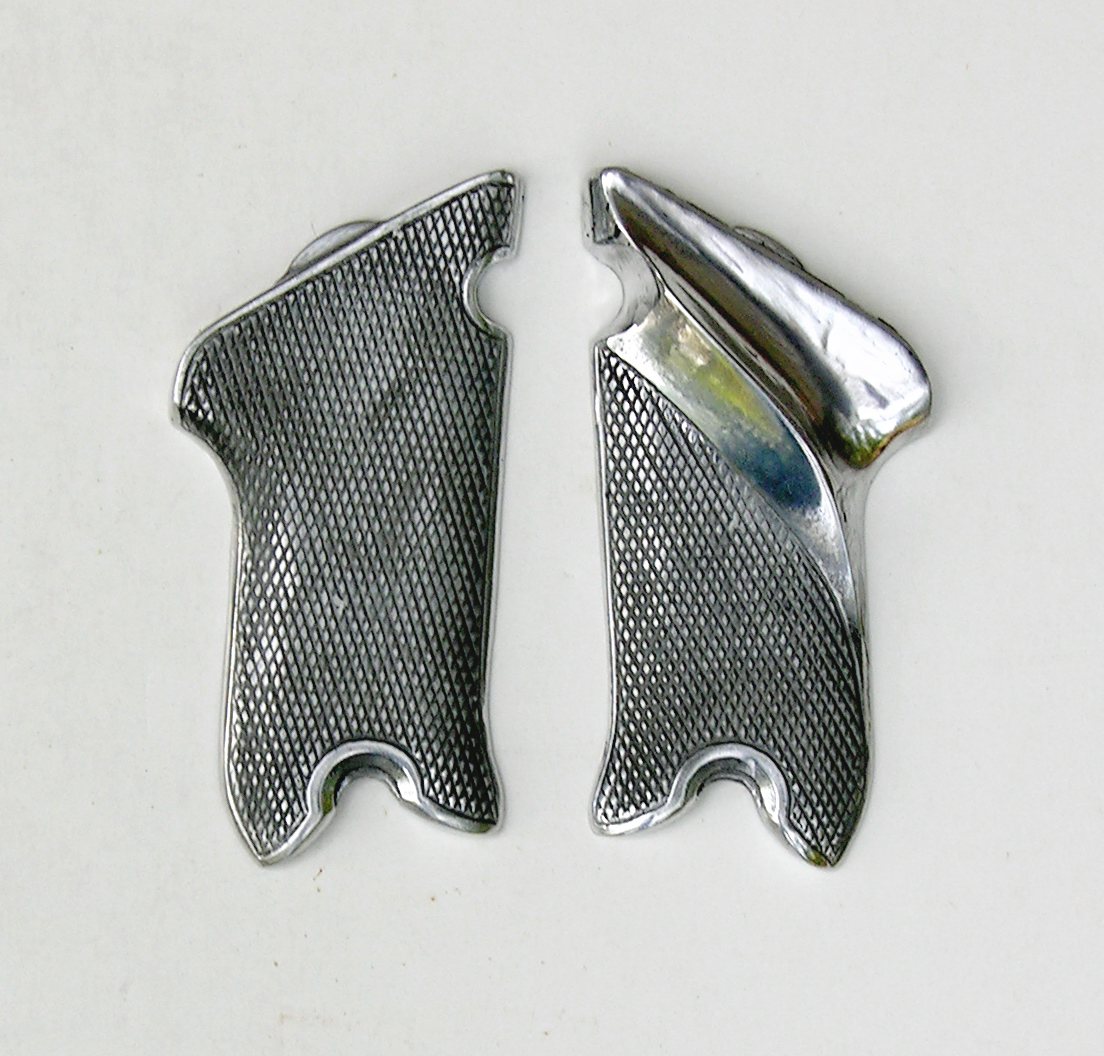

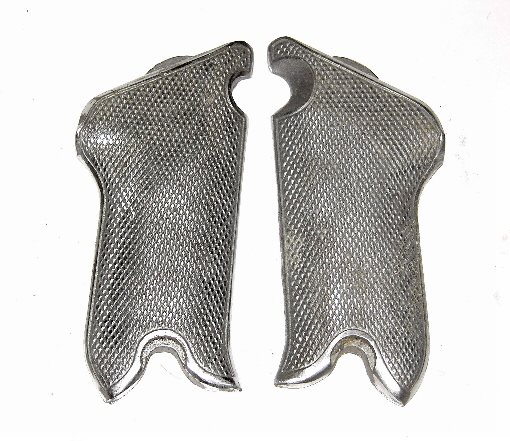

CUSTOM CAST ALUMINUM
It has the look of brushed silver
on the blue gun. Beautiful!
GRIPS.....................SOLD OUT
Light and strong. Won't warp or
break. Beautiful compliment to
a blue Automatic Pistol.
NOBODY else will have these!
====
ERMA RX-22 Auto
This is wrong schematic )
Click to Enlarge
Firing Pin.....................................$25
Firing Pin Spring.........................$ 8
Firing Pin Stop............................$15
Firing Pin Plug............................$15
Extractor.....................................$20
Extractor Spring.........................$ 3
Extractor Plunger........................$10
Rear Sight...................................$25
Rear Sight Screw........................$4
Hammer......................................$30
Hammer Spring..........................$ 8
Hammer Spring Guide...............$ 8
Trigger........................................$20
Trigger Bar.................................$15
Trigger Guard.............................$25
Slide...........................................Out
Magazine....................................OUT
Magazine Catch..........................$20
Block Catch Link........................$20
Ignition Safety Lever..................$20
Safety Lever................................$20
Grips...........................................OUT
Grip Screws Each.........................$ 2
SOME Erma Models interchange
with these parts. Ask on your
Model.
Erma is Out of Business and these
are parts for Obsolete Models
$3 Minimum Postage
Add $2 if you want it Insured...
==============
ERMA
Click to Enlarge

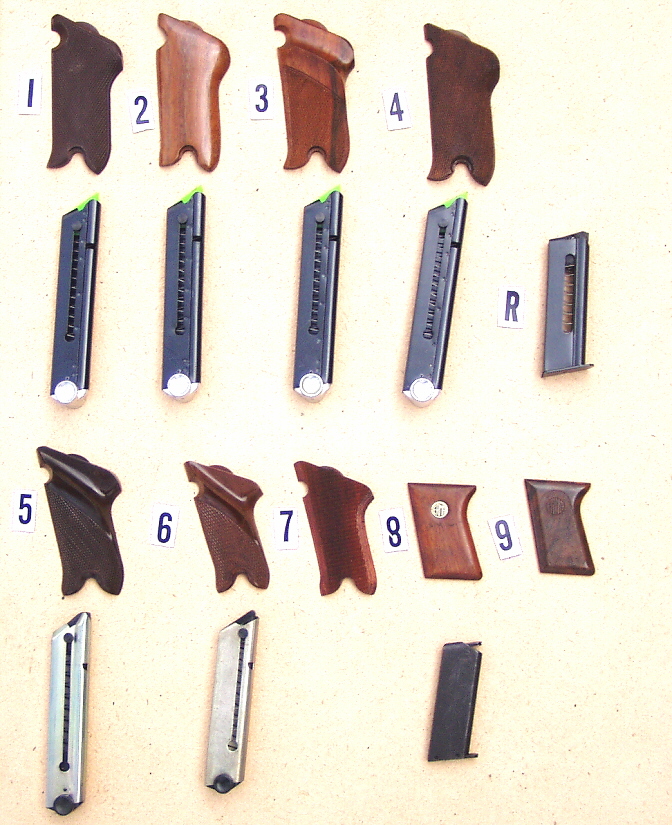

Grips 1 Through 4 Fit all of the
EP-22 LA-22 ET-22
#1 Erma EP-22 Brown Plastic....#35
#2 EP-22 Smooth Walnut.........OUT
#3 ET-22 Thumbrest ET-22.....Out
#4 EP-22 Checkered Walnut...OUT
Clips below these models are $45
#5 KGP-69 22 Brown Plastic.... $25
#6 KGP-68 Brown Plastic..........$25
#7 KGP-68 Checkered Walnut.$45
#8 EP=25 .25 Caliber Plastic.....$25
#9 PP-25 Wood with Emblem...$30
3R RX-22 Clip is $35
=======
Click to Enlarge

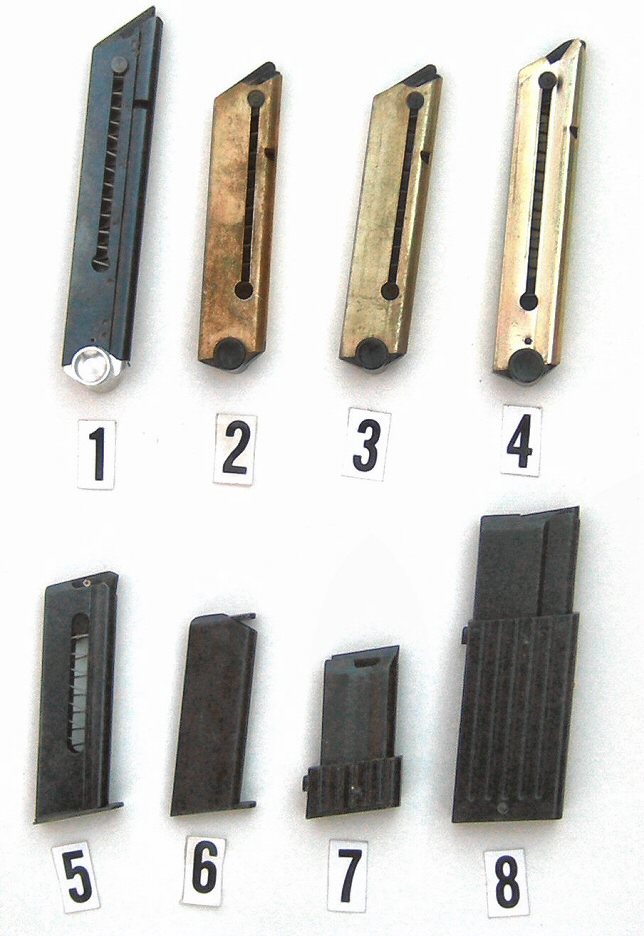

#1 EP-LA-ET Magazine...................$50
#2 KGP-68 .32 Magazine.................OUT
#3 KGP-68 .380 Magazine...............OUT
#4 KGP-69 .22 Magazine.................$50
#5 RX-22 .22 Magazine..................$35
#6 EP-25 .25 Magazine................... $40
#7 EM-1 .22 Rifle 5 Shot ................OUT
#8 EM-1 .22 MAGNUM 15 Shot...OUT
Not shown 15 Shot 22 LR...............OUT
ERMA KGP 68 32/380
KGP-69 .22.
State Model and Cal
Click
on Picture
Model 68 Shown. Basically
The same parts as KGP-69
Picture is KGP 68
2 Trigger......................................$20
3 Trigger Bar...............................$25
4 Trigger Bar Spring....................$ 3
5 6Trigger Spring or Pin...............$ 3
7 Sear............................................$25
8 Sear Spring................................$ 5
9 Block Catch Link.......................$10
10 11 Block Catch Spring or Pin..$ 4
12 Safety.......................................$25
13 14 Safety Spring And Ball......$10
16 Magazine Catch.......................$25
17 Magazine Catch Spring...........$ 4
19 20 Plastic Grips........................$25
KGP-68 Wood Checker Grips $45
Aluminum Grips. Checkered.......$50
Grip & Clip Pictures Below
22 Barrel With Slide....KGP-68...$100
Barrel/Slide Needs Straightening
This is a slight bent slide.........$65
23 Front Sight...............................$25
24 Breech Block Stripped. .NET $45
25 Extractor.................................Out
26 27 Extractor Spring and Plunger.$10
28 Forward Toggle link.................$45
NO MORE FRONT TOGGLES FOR KGP-68 MODEL
30 Rear Toggle Link for KGP 69 ONLY.....NOT KGP68................$50
29 Connecting Pin..........................$ 5
34 Firing Pin Spring.......................$10
35 Firing Pin Spring Guide....68....$35
Ejector.. Model 69...................$35
38 Recoil Spring............................$15
37 Recoil Spring Tube..................$15
39 Recoil Spring Guide.................$20
40 Lock Bolt..................................$25
41 Magazine........KGP -69.......... $50
KGP-68 32 CALIBER...................$50
KGP-68 380 CALIBER.................$50
Magazine Safety Lever.............$15
Safety Plate KGP-69.................$10
New Gun Assembly Sheet.........$10
Spring Rebuilding KIT
State Model and Caliber
Erma KGP-68 or 69 Luger Type $40
Firing Spring, Recoil Spring,
Trigger Bar Spring, Safety Spring,
Magazine Catch Spring, Safety Spring,
Extractor Spring,
State Model And Caliber when ordering
==========

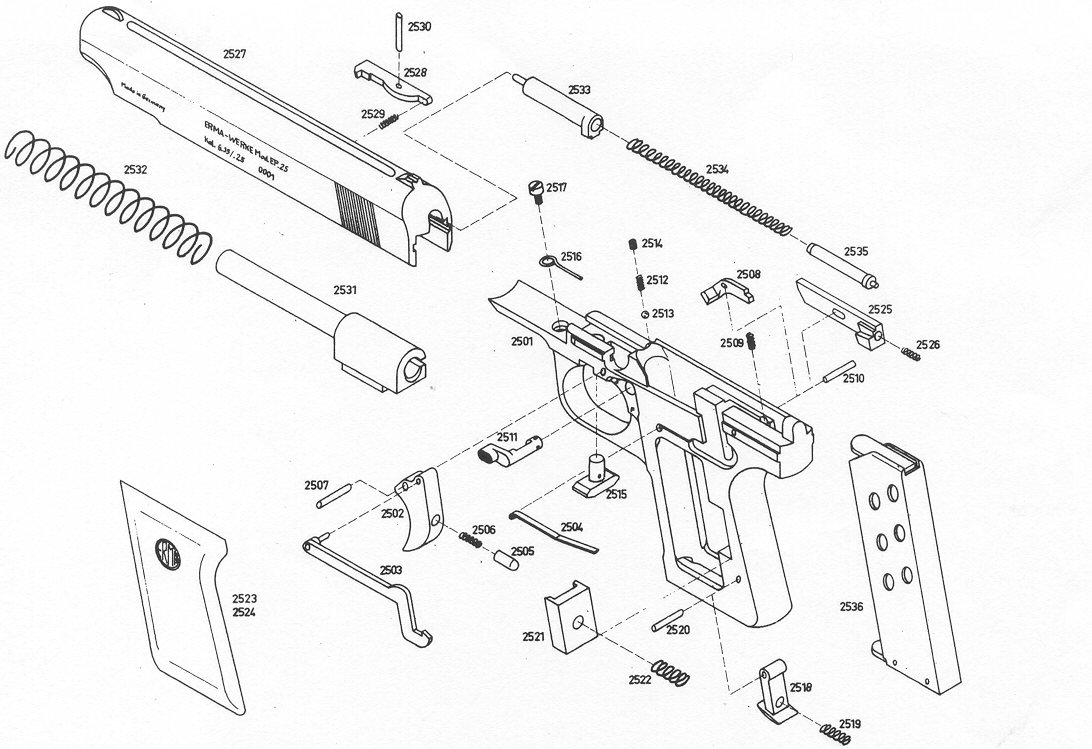

ERMA EP-25 .25 Auto
Also known as RG-42
Click on
Trigger........................................$15
Trigger Bar.................................$15
Bar Spring and Plunger..............$ 5
Sear ............................................$10
Sear Spring and Pin....................$ 2
Safety..........................................$20
Safety Spring and Ball...............$ 3
Takedown Bolt...........................$20
Magazine....................................$40
Magazine Catch.........................$20
Mag Catch Spring & Pin...........$ 3
Grip Holder And Spring.............$ 5
Pair Plastic Grips.......................$25
Pair Wood Grips........................OUT
Safety Slide................................$15
Slide..........................................OUT
Barrel.........................................$50
Firing Pin.....................................$35
Firing Pin Spring.........................$15
Firing Pin Spring Stud.................OUT
Spring Rebuilding KIT
Erma EP-25 .25 Auto $30
, Firing Pin Spring.
Trigger Bar Spring, Sear Spring,
Safety Spring, Takedown Bolt Spring,
Magazine Catch Spring,
Magazine Spring, Safety Slide Spring,
ERMA EG-72 Pump .22
Click
on Pict
Barrel...........Net...........................$70
Outside Magazine tube...............Out
Inside Magazine Assembly.........out
Inside Magazine .22 Magnum.....$45
Trigger Guard..............................$15
Cover Screw Each........................$ 2
Cartridge Guide...........................$15
Countersink Screw.......................$ 5
Carrier Pin or Spring or Ball........$ 6
Action Lever.................................$35
Lever Detent or Spring or Ball....$ 4
Locking Bar..................................$15
Trigger..........................................$15
Hammer........................................$35
Hammer Spring or Guide.............$10
Rear Sight Assembly....................$20
Firing Pin.......................................$30
Front Sight....................................$25
Front Sight Cover.........................$10
Rear Sight.................................OUT
Ejector...........................................$15
Extractor.......................................$25
Extractor Pin and Spring..............$10
Stock Net Cost...........................OUT
Forearms Net Cost......................$50
New Gun Assembly Sheet...........$10
,
==========

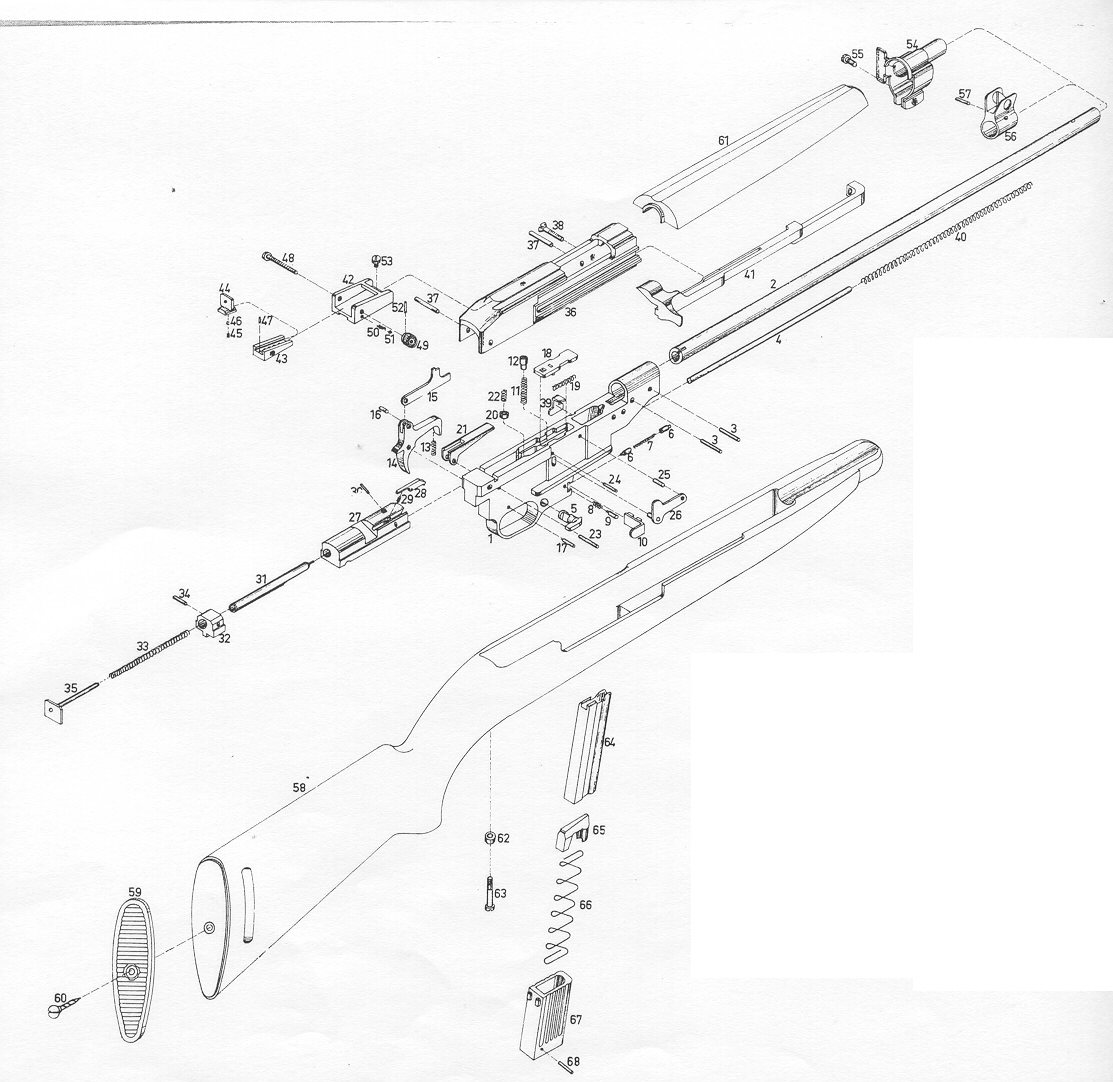

ERMA EM-1 22 Rifle
(M-1 Carbine Style)
Click
on Picture
Barrel .......................Net...........$80
Operating Slide Rod..................Out
Safety Lever..............................$ 15
Safety Spring and Plunger.........$ 10
Magazine Catch.........................$15
Catch Spring and Plunger..........$ 10
Trigger .......................................$15
Trigger Bar.................................$15
Trig Bar Spring & Plunger.........$ 10
Sear.............................................$25
Sear Spring ................................$ 5
Sear Spring Plunger....................$ 5
Sear Release..............................$15
Sear Release Plate....................$10
Plate Spring and Plunger...........$ 5
Bolt Stripped...................Net.....$55
Firing Pin.........................no more av.
Firing Pin Spring.........................$15
Operating Slide (Bolt handle) OUT
Very scarce part...
Operating Slide Spring..............OUT
Operating Slide Guide Rod.......$15
Ejector........................................$15
Extractor....................................$25
Extractor Spring and Pin...........$ 6
Front Band Assembly................$25
Band Assembly Screw...............$ 4
Front Sight.................................$25
Front sight pin............................$4
New Gun/Parts Booklet...........$10

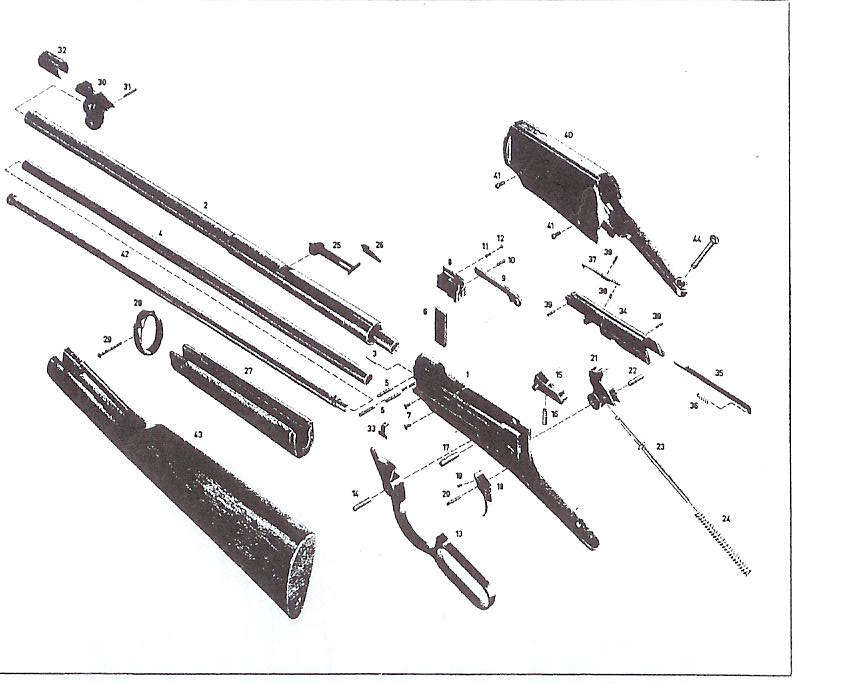

ERMA EG-71 Lever Act .22
EG-72.73.76. AND EG-712
Click to Enlarge
Ejector..............................$25
Cartridge Guide..........................$10
Carrier Spring and Ball...............$ 8
Finger Lever...............................$45
Finger Lever Pin.........................$ 5
Locking Bar................................$15
Lock Bar Spring and Pin............$ 5
Trigger........................................$15
Trigger Pin and Spring...............$ 5
Hammer......................................$30
Hammer Spring Or Guide Ea....$ 5
Rear Sight ..................................OUT
Rear Sight Elevator....................OUT
Forearm Net Cost.......................$45
Stock Net Cost..........................OUT
Rear Barrel Band.......................$15
Rear Band Screw........................$ 5
Front Sight...................................$25
Front Sight Cover.......................$25
Front Sight Pin............................$ 4
Bolt Stripped Net Cost...............$40
Firing Pin....................................$35
Firing Pin Spring.........................$ 5
Extractor.....................................$25
Extractor Spring and Pin............$ 5 each
Inside Magazine Magnum.ONLY FITTS MODEL EG-73........$45
No more tubes for long rifle
New Gun Assembly Booklet......$10
==========
