Click on the Picture to
ENLARGE IT!
Paste it in Any Writing Program
Enlarge it any Size you Like.

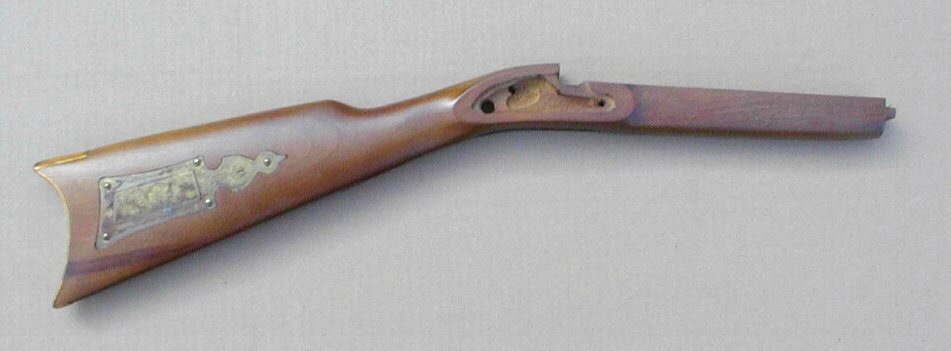

#1 Stock With Hardware $180

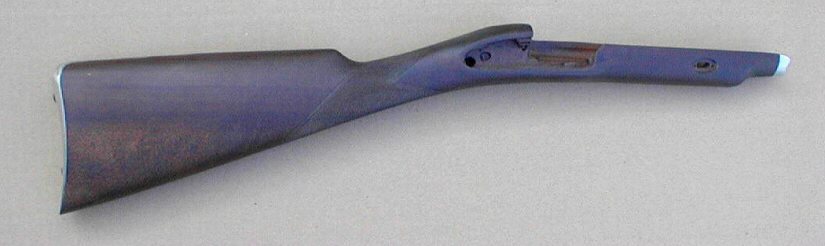

#2 Stock With Hardware....$150
#3 Stock With Hardware....$150
Top Forend...........................$35
Bottom Forend W/Catch....$35

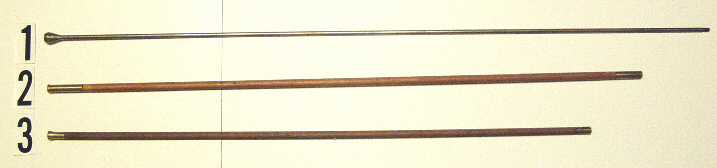

Ram Rods
#1 All steel, Treaded on the end.
Military Style. Body is .225
Head is .0550 32 1/2 inch Long..$25
#2 Wood Rod with Brass on both
ends. Head .0430. Rod is .375
Rod is 28 1.2 Inches Long........$25
#3 Wood Rod with Brass on both
ends. Head is ,430 Rod is .375
Rod is 26 Inches Long.............$25
================
Click Picture
#1 Large Lock Assembly.......$80
#1 is about Medium...
#2 Medium Lock Assembly..Out
#3 Small Lock Assembly.......Out
#4 Medium Flint Lock............$80
#5 Sharps style Cap Box........$30
#6 Large Cap Box, Cover......$35
#7 Small Pear Cap Box...........$30
#8 Long Cap Box....................$35
#9 Military type Trigger Guard
With a front Swivel.................$35
#10 Ornate Brass Trigger Guard
with the Trigger......................$35
#11 Trigger Guard Ornate with
screw type Front.....................$30
#12 Heavy Brass Trigger Guard
takes front and rear Screw.....$30
#13 Small Brass Trigger Guard
Held in with pins Ft and Rear.$25
#14 Trigger Assembly Single.$45
#15 Trigger Double Set Trigger
with parts.................................$85
#16 Butt Plate HEAVY Brass.
Winchester style. Very close to
the 1873 and 86 Plate.............$75
#17 Butt Plate Medium Military
Type. Round top Tang...........$65
#18 Butt Plate Medium Hawken
Type with bottom Curl............$75
==============
$18 Postage and Insured on
Stocks
===============
$5 Minimum Postage
Add $2 for Insured if wanted.
Repair your Hawken or Build one!
Click for Schematic!
Butt Plate Screws Each.......................$ 2
Patch Box Plate Only Brass...............$35
Spring Mounting Screw.......................$ 3
Box Mounting Screw...........................$ 3
Trigger Plate........................................$15
Hair Trigger.........................................$15
Hair Trigger Spring.............................$ 5
Set Trigger...........................................$15
Hair Trigger Adjustment Screw..........$ 2
Trigger Main Spring............................$10
Trigger Spring Mount Screw...............$ 2
Trigger Spring Adjustment Screw.......$ 2
Lock Plate Stripped............................$20
Tumbler.............................................Out
Fly.......................................................$ 5
Bridle...................................................$10
Bridle Mount Screws Each.................$ 3
Sear Plunger and Spring.....................$ 5
Hammer Spring Coil...........................$10
Hammer Spring Guide........................$10
Hammer "V" Spring.....................Out
Hammer Percussion.......................$30
Hammer Flint Lock.......................$35
Hammer Mount Screw...................$ 4
Stock Escutcheon...........................$ 6
Escutcheon Screw..........................$ 3
Brass Wedge..................................$15
Brass Forend Cap..........................$20
Cap Mounting Screw.....................$ 3
New Barrel ..Style? Caliber?........$75
Breech Plug....................................$35
Clean Out Plug...............................$ 5
Nipple.............................................$ 3
Tang................................................OUT
Tang Screw.....................................$ 3
Barrel Lug......................................$10
Barrel Rib......................................$20
Rib Mounting Screws Each...........$ 3
Brass Thimble................................$10
Thimble Mounting Screw Each.....Out
Rear Sight Base............................Out
Base Screws Each..........................Out
Rear Sight Elevator........................Out
Rear Sight Leaf..............................Out
Rear Sight Assembly......................Out
Brass Rear Dovetail Sight.............$15
Ram Rod, Brass Fittings................$20
Cleaning Jag...................................$ 8
Side Lock Assembly Flintlock.......$80
Side Lock Assembly Caplock.......$80
